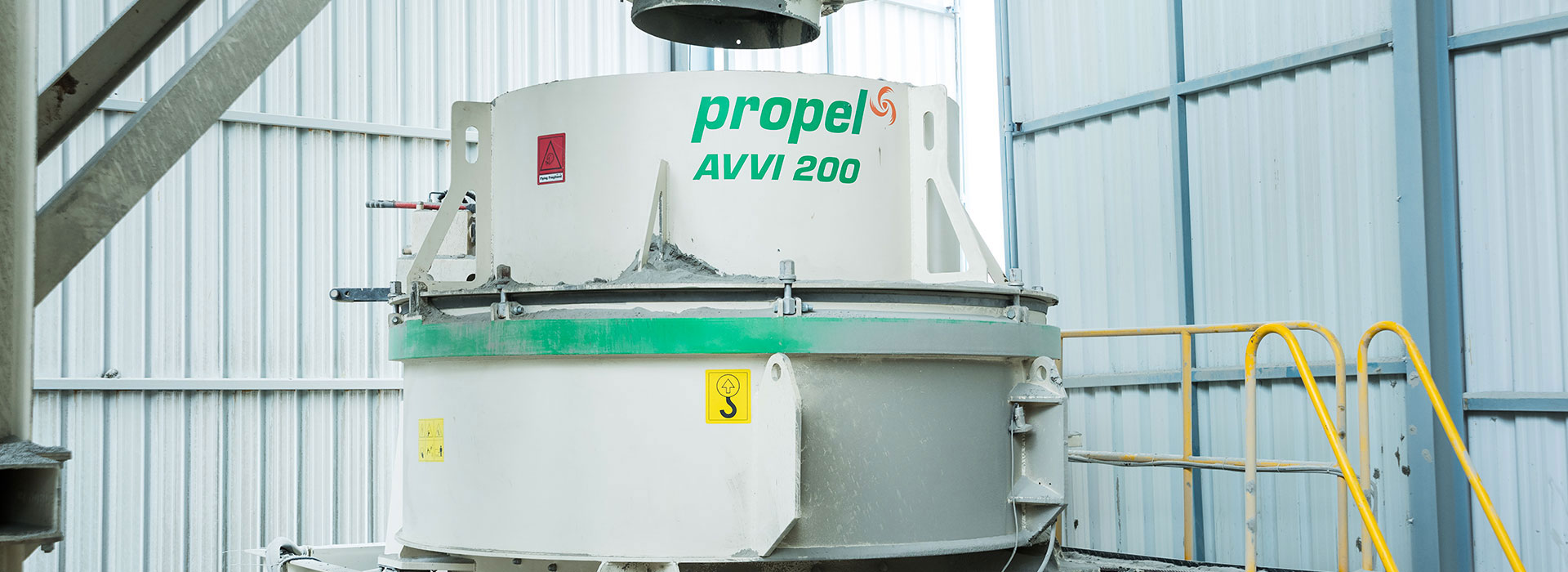

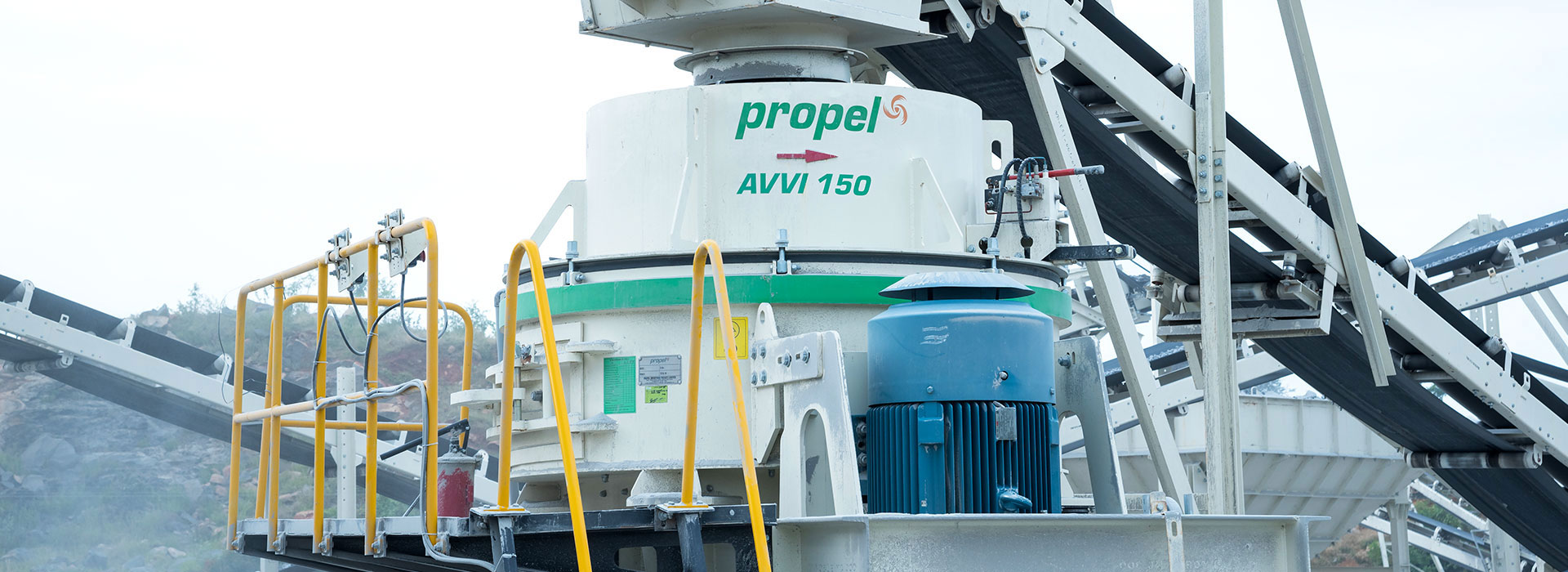

VERTICAL SHAFT IMPACTOR
VERTICAL SHAFT IMPACTOR
AVVI SERIES
Propel Vertical Shaft Impactor has been developed with inputs from aggregate producers. The high velocity impact crusher in Propel VSI enhances the shape of the aggregates and improves the surface structure. It is suitable for all types of materials.
HIGHLIGHTS
Steel structure for smooth operation. Simple inter-changeable cartridge type rock box for ‘rock-on-rock’ applications.Hydraulic feed control In-built device. Parallel flow system provides increased capacity and less micro fines content.Optional setup for wet application / roof lifting mechanism (optional) available for easy maintenance.
Due to better shaping, the voids are taken care of, resulting in less consumption of cement. Propel Vertical Shaft Impactor produces shapes as per the Ministry of Road Transport & Highways (MORTH) standards.Crusher impact combined with speed gives the unique shape resulting in production of high-quality manufactured sand confirming to C 144 standards.
| SERIES | UNITS | AVVI 55 | AVVI 75 | AVVI 100 | AVVI 150 |
|---|---|---|---|---|---|
| Feed Size (Max.) | mm (inch) |
32 (1.2) |
32 (1.2) |
43 (1.7) |
53 (2.0) |
| *Capacity | TPH | 40 – 80 | 50 – 110 | 75 – 140 | 120 – 220 |
| Rotar Diameter | mm (inch) |
680 (26.7) |
680 (26.7) |
710 (28.0) |
880 (34.6) |
| Rotar Speed | m/sec | 45 – 60 | 45 – 70 | 45 – 70 | 45 – 70 |
| Impact Cartridge Options | Rock-on-Rock | ||||
| Port Options | 3 / 4 | ||||
| Lubrications | Grease | ||||
| Motor Power | kW (hp) |
55 (75) |
75 (100) |
110 (150) |
160 (215) |
| Weight | kg (Ton) |
4200 (4.2) |
4600 (4.6) |
6600 (6.6) |
8700 (8.7) |
| SERIES | UNITS | AVVI 200 | AVVI 250 | AVVI 300 | AVVI 500 |
| Feed Size (Max.) | mm (inch) |
58 (2.2) |
58 (2.2) |
66 (2.6) |
66 (2.6) |
| *Capacity | TPH | 180 – 320 | 210 – 370 | 250 – 470 | 300 – 500 |
| Rotar Diameter | mm (inch) |
880 (34.6) |
880 (34.6) |
990 (39.0) |
990 (39.0) |
| Rotar Speed | m/sec | 45 – 70 | 45 – 70 | 45 – 75 | 45 – 75 |
| Impact Cartridge Options | Rock-on-Rock / Rock-on-Anvil | ||||
| Port Options | 3 / 4 / 5 | ||||
| Lubrications | Grease | ||||
| Motor Power | kW (hp) |
220 (300) |
2 x 132 (2 x 175) |
2 x 187 (2 x 250) |
2 x 220 (2 x 300) |
| Weight | kg (Ton) |
9250 (9.2) |
11500 (11.5) |
14800 (14.8) |
15500 (15.5) |
*Details may vary based on application
Note: All the above technical details may vary at any time during engineering process & design development
