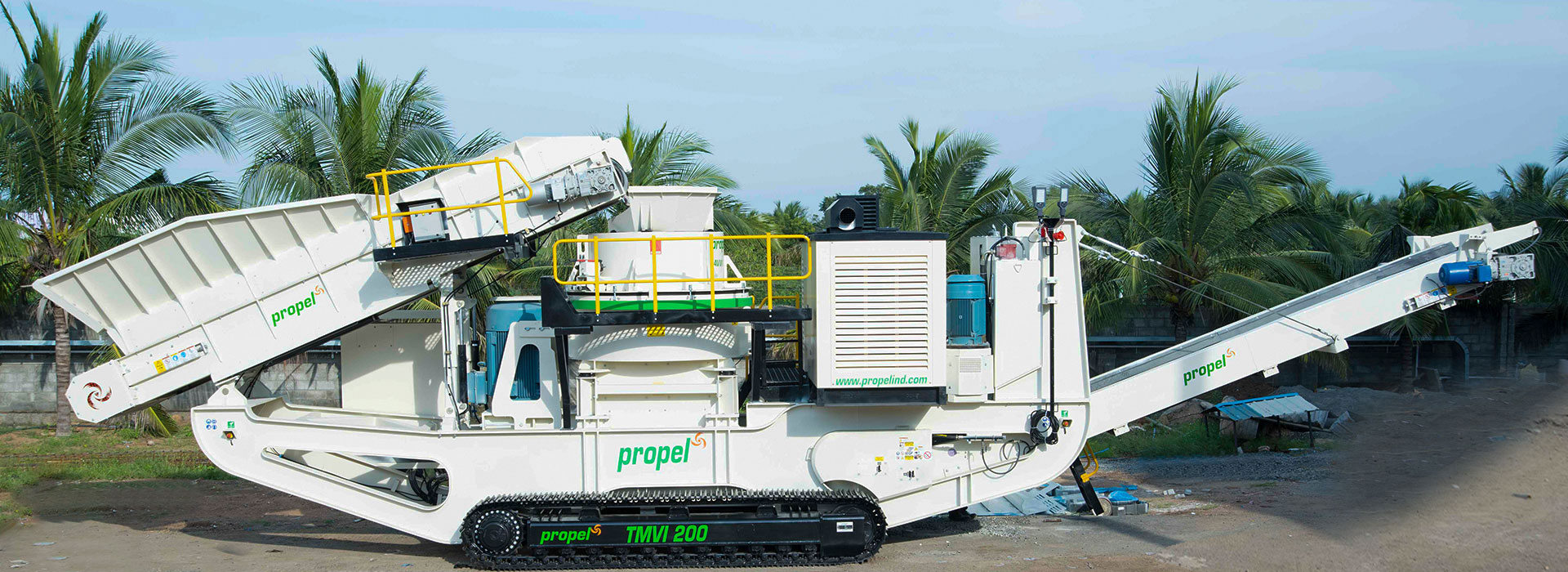

TRACK MOUNTED VERTICAL SHAFT IMPACTOR
TMV SERIES

The Track Mounted Vertical Shaft Impactor has the established track record of cost savings, durability and unmatched performance.

track mounted vertical shaft impactor

Four-point emergency stop. Detachable dog lead control system for marching.
Radio remote control for marching (optional).Metal detector. Electrical driven hydraulic system for quick setup & marching.
Low noise acoustic engine canopy with overload protection.

SALIENT FEATURES

vertical shaft impactor

TECHNICAL DATA

SERIES	UNIT	TMV 200	TMV 300
Feed Opening Size (W x L)	mm (inch)	58 (2.3)	66 (2.6)
CSS Range	mm (inch)	15-30 (0.6-1.2)	24-35 (0.9-1.4)
*Capacity	TPH	180 – 320	250 – 470
Hopper / Feeder
Hopper Capacity	m³	6	7
Feed Belt Width ( mm )	mm (inch)	1000	1200
Main Conveyor
Belt Width	mm	1000	1200
Discharge Height	mm	3600	3400
Stock Pile Capacity	m³	69.4 @ 40°	58.4 @ 40°
Under Carriage
Shoe Width	mm	500	500
Hydraulic Tank Capacity	Ltrs	390	420
Power Unit
Engine		Scania DC13 Engine With Alternator (or) Volvo Penta TAD 1355 GE with Alternator	Scania DC16 Engine With Alternator
Diesel Tank Capacity	Ltrs	900	1000
Dimension
Transport ( L x W x H )	mm (inch)	17540 x 3500 x 4000 (690.5 x 137.8 x 157.5)	17500 x 3470 x 4190 (688.9 x 136.6 x 164.9)
Working ( L x W x H )	mm (inch)	16570 x 3770 x 4830 (652.4 x 148.4 x 190.0)	16400 x 4110 x 5290 (645.6 x 161.8 x 208.2)
**Weight	Kg (Ton)	36000 (36.0)	46000 (46.0)

*Details may vary based on application
**Weight inclusive of motor & accessories
Note: All the above technical details may vary at any time during engineering process & design development
