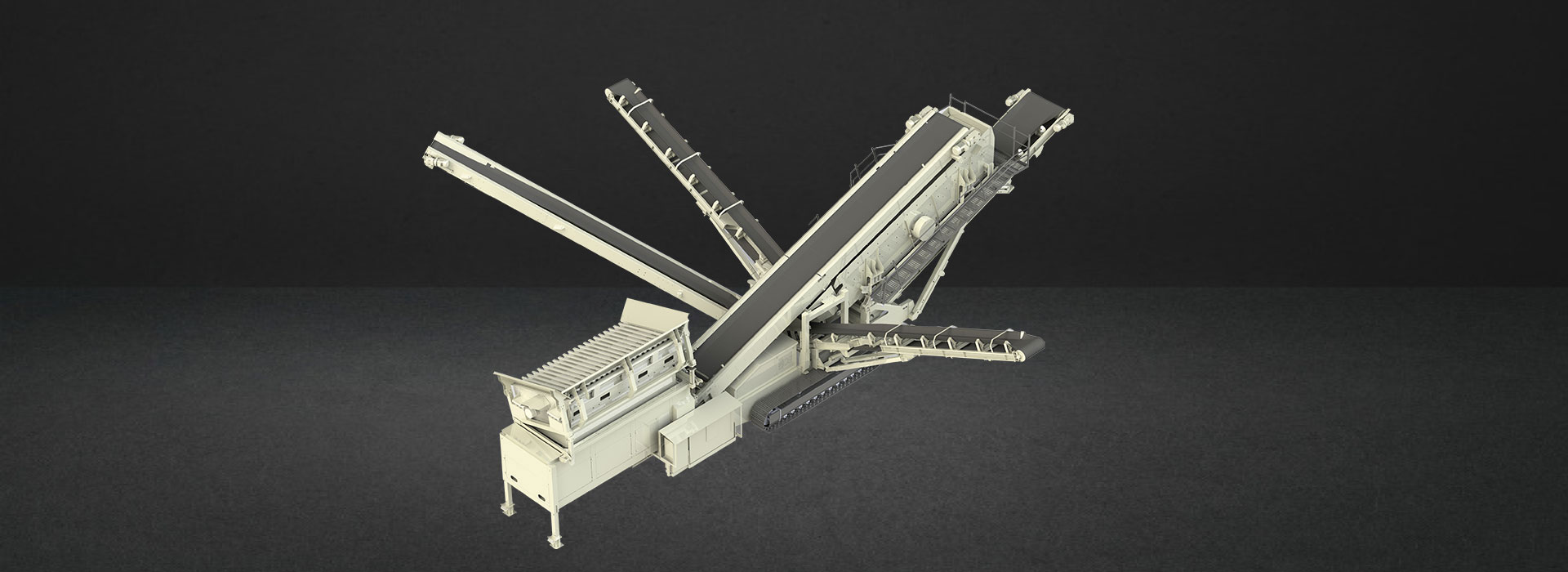

TRACK MOUNTED SCREEN
TMS SERIES (3 DECK)

Propel electrical mobile screens’ robust design, versatility and easily adjustable strokes enables screening for multiple applications.

Four point emergency stop. Detachable dog lead control system for marching.
Radio remote control for marching (optional). Electrical-driven hydraulic system for quick set-up & marching. High screening capacity.
Robust heavy duty chasis with catwalk access on both sides of the machine

SALIENT FEATURES

TECHNICAL DATA

SERIES	UNIT	TMS 1561
Top & Middle Deck Size mm	mm (inch)	6120 x 1550 (241 x 61)
Bottom Deck Size	mm (inch)	5280 x 1550 (216.5 x 61)
Number of decks		3
*Capacity	TPH	Up to 500
Hopper
Hopper Capacity	m³	6
Oversize Side Conveyor
Stock Pile Capacity	m³	95@40°
Midsize Side Conveyor
Stock Pile Capacity	m³	157@40°
Bottom Deck Side Conveyor
Stock Pile Capacity	m³	157@40°
Under Size Product Conveyor
Stock Pile Capacity	m³	115@40°
Under Carriage
Shoe Width	mm	500
Hydraulic Tank Capacity	Ltrs	390
Power Unit
Engine		Volvo Eicher Commercial Vehicles (VECV) EE694 TCI Engine With Alternator (or) CAT C4.4 Engine with Alternator
Diesel Tank Capacity	Ltrs	350
Dimension
Transport ( L x W x H )	mm (inch)	18620 x 3600x 4250 (733.0 x 141.7 x 167.3)
Working ( L x W x H )	mm (inch)	20310 x 19875 x 6055 (800.0 x 782.5 x 238.4)
**Weight(Tipping grid)	Kg (Ton)	42000 (42.0)
**Weight(Vibrating grid)	Kg (Ton)	45000 (45.0)

*Details may vary based on application
**Weight inclusive of motor & accessories
Note: All the above technical details may vary at any time during engineering process & design development
