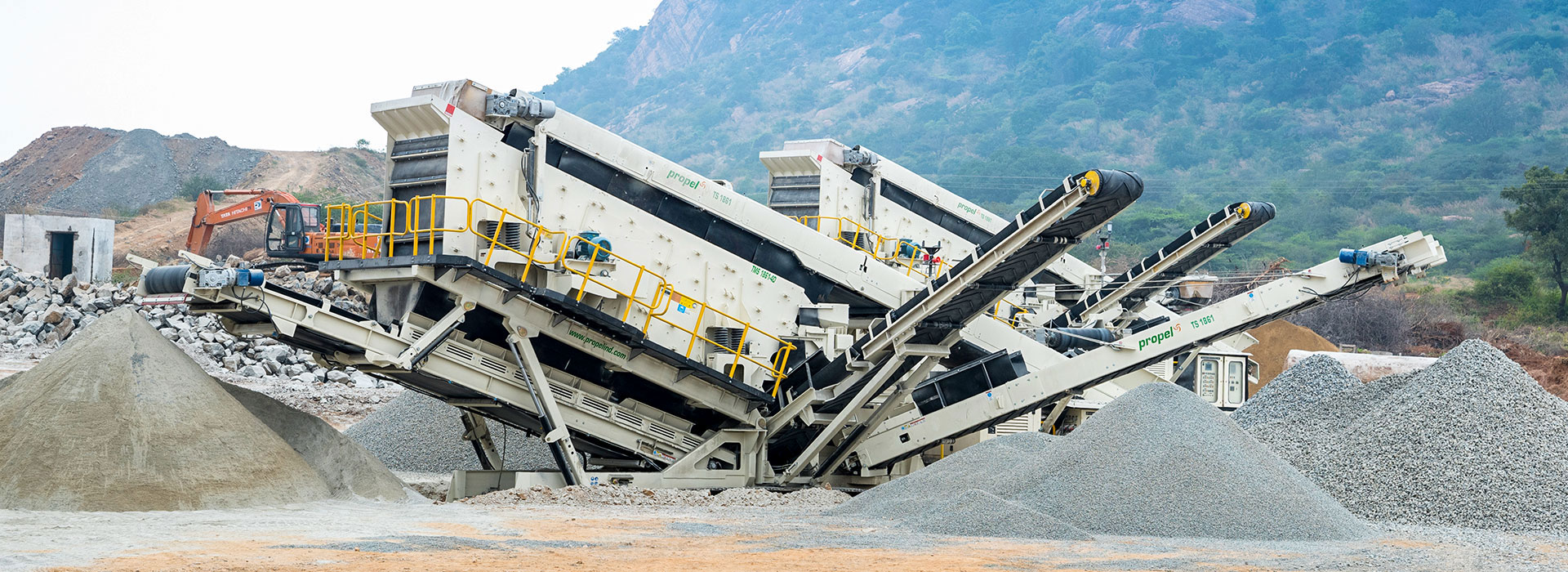

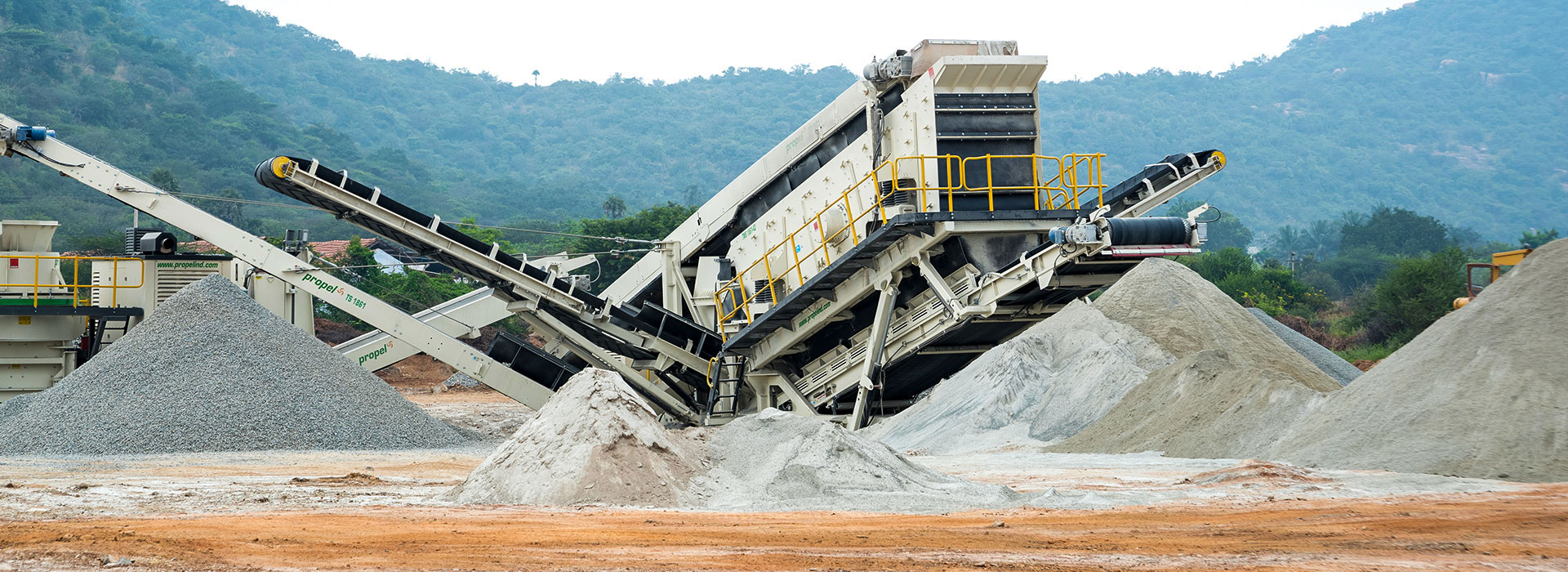

TRACK MOUNTED SCREEN
TMS SERIES (4 DECK)

The Track Mounted Screen from Propel Industries has the best of both technology and engineering expertise. The high engineered huck bolt fastening system has proven to be a very safe and reliable method.

Four point emergency stop. Detachable dog lead control system for marching.
Radio remote control for marching (optional). Electrical-driven hydraulic system for quick set-up & marching. High screening capacity.
Conveyors well skirted and sealed to avoid material spillages.

SALIENT FEATURES

TECHNICAL DATA

SERIES	UNIT	TMS 1861
Top & Second Deck Size	mm (inch)	6000 x 1800 (236.2 x 70.8)
Third Deck Size	mm (inch)	5530 x 1800 (217.7 x 70.8)
Fourth Deck Size	mm (inch)	5400 x 1800 (209.3 x 70.8)
Number of decks		4
*Capacity	TPH	Up to 600
Hopper
Hopper Capacity	m³	2
Oversize Side Conveyor
Stock Pile Capacity	m³	95
Midsize Side Conveyor
Stock Pile Capacity	m³	157 @40°
Mid Oversize Conveyor
Stock Pile Capacity	m³	95 @40°
Bottom Deck Side Conveyor
Stock Pile Capacity	m³	157 @40°
Under Size Product Conveyor
Stock Pile Capacity	m³	115
Under Carriage
Shoe Width	mm	500
Hydraulic Tank Capacity	Ltrs	390
Power Unit
Engine		Volvo Eicher Commercial Vehicles (VECV) EE694 TCI Engine With Alternator (or) CAT C4.4 Engine with Alternator
Diesel Tank Capacity	Ltrs	350
Dimension
Transport ( L x W x H )	mm (inch)	15620 x 3600 x 4100 (615.0 x 141.7 x 161.4)
Working ( L x W x H )	mm (inch)	18280 x 20470 x 6665 (720.0 x 806.0 x 262.4)
Operational Dimension (including stockpile)	mm (inch)	24825 x 31550 x 6365 (977.3 x 1242.1 x 250.5)
**Weight	Kg (Ton)	53000 (53.0)

*Details may vary based on application
**Weight inclusive of motor & accessories
Note: All the above technical details may vary at any time during engineering process & design development
